Powder Blenders & Separators Used for Silica Powder

Silica powder has a light specific gravity, about 2.2g/cm3, and a bulk density of 140g/l. During the screening process, because the material is light, it easily floats, producing dust and polluting the production environment.

The ultrasonic system can solves the above problems, avoid to clog the screen mesh and improve production efficiency. The ultrasonic power generator supply converts electrical energy into mechanical energy through the converter to produce high-frequency vibration.

The high-frequency range is adjustable from 33kHz to 38kHz, the amplitude and frequency are changed through the control panel, during the dividing process, the output power is proportional to the square of the amplitude in the range from 50% to 100%, and the power can be adjusted arbitrarily from 25% to 100%.

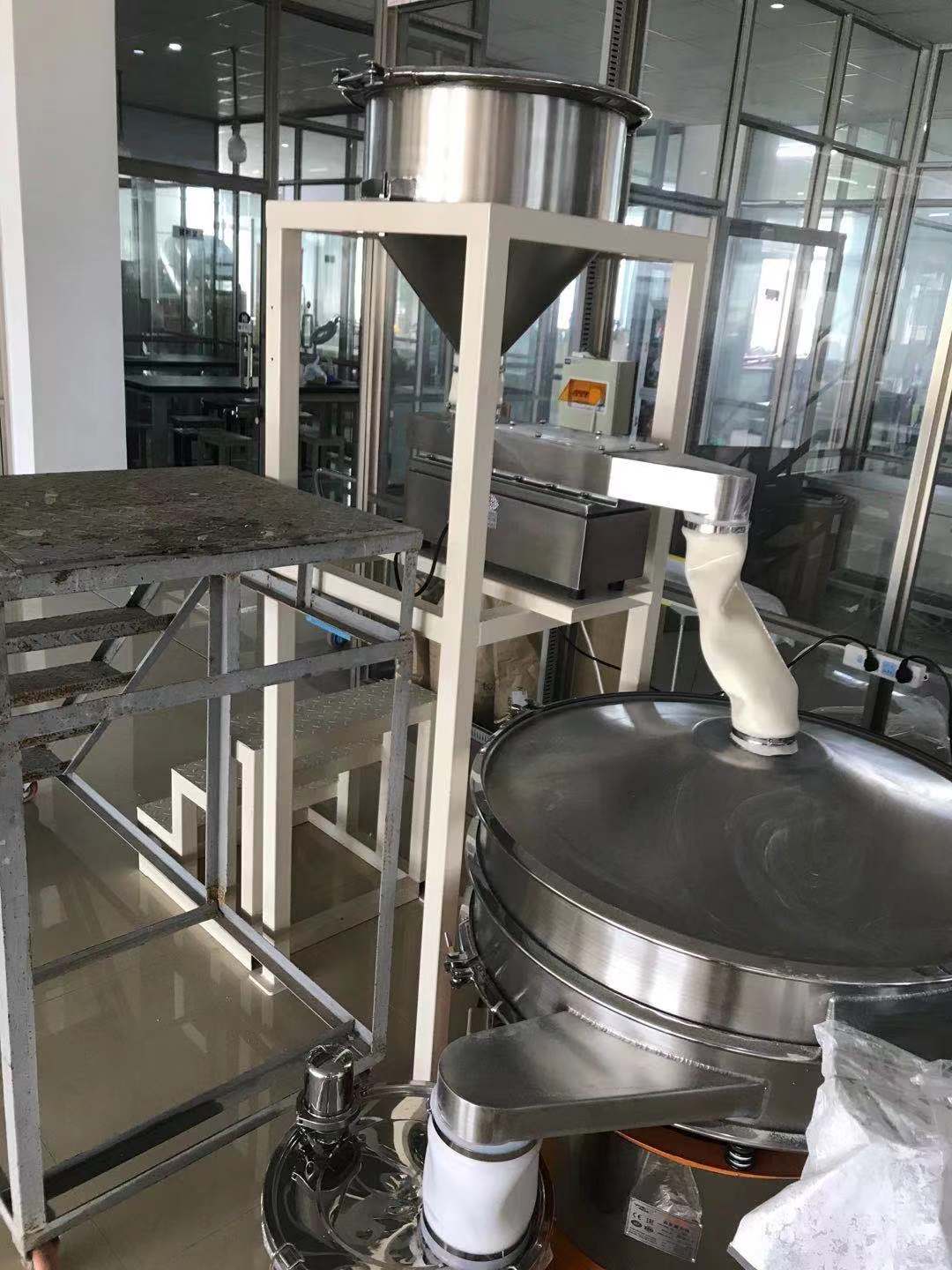

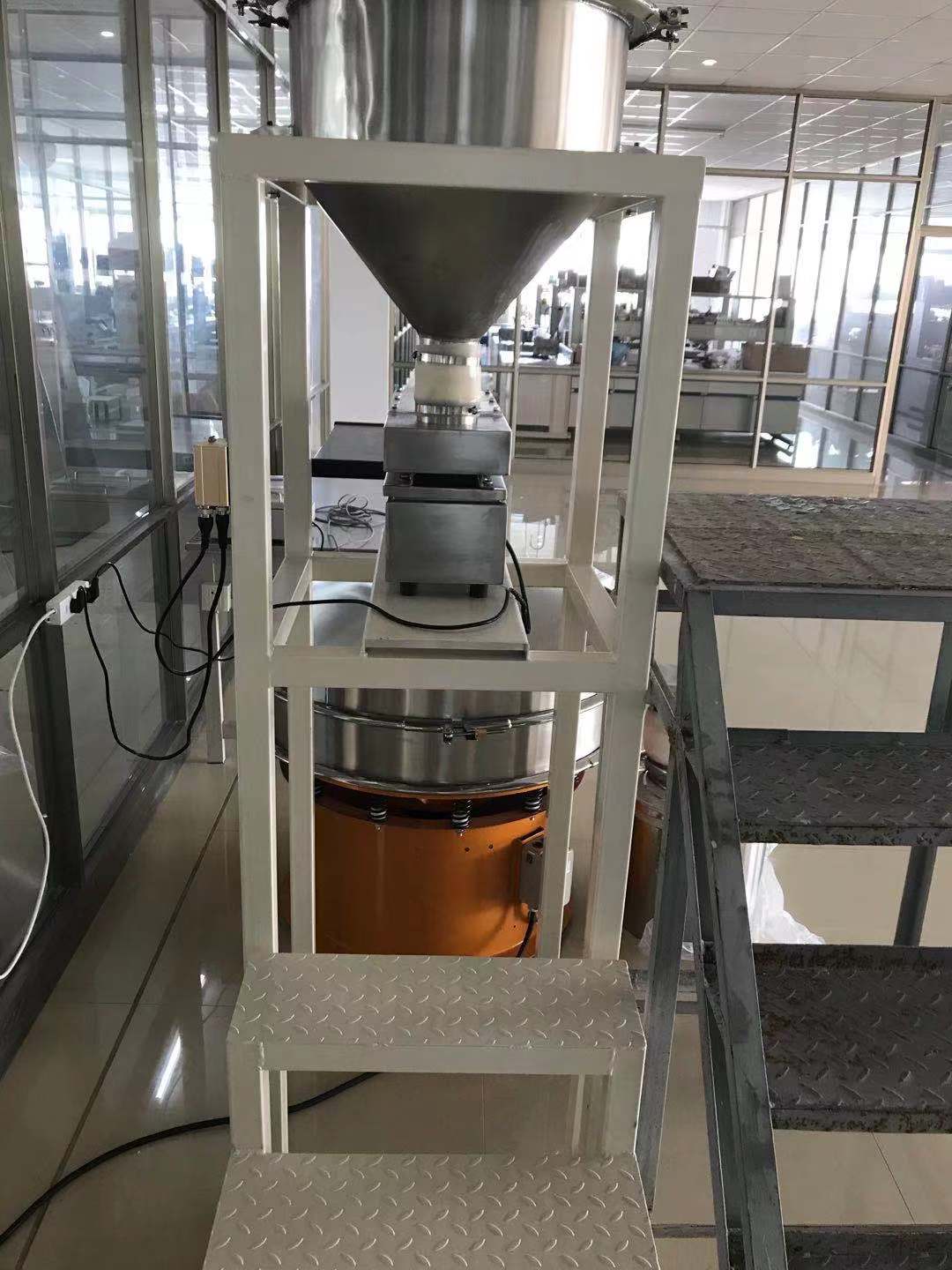

The customer has purchased 6 sets of ultrasonic systems equipped with electromagnetic feeders and silos, 1000mm ultrasonic vibrating screens, and 100W ultrasonic systems, the overall equipment is made of stainless steel, and the screen are made of stainless steel 316L, the electromagnetic feeder ensures uniform feeding, easy to clean.

At the same time, we design feeding steps and feeding station solutions for customers to facilitate and mechanize operations and reduce manual operations. The 50L silo ensures the timely transfer and storage of finished materials and ensures product quality.

This ultrasonic vibro screening equipment is used for various dental applications such as synthetic resin teeth, denture base resin, dental wax, etc. The design and production process of the entire system are implemented in accordance with food & pharmaceutical standards.
