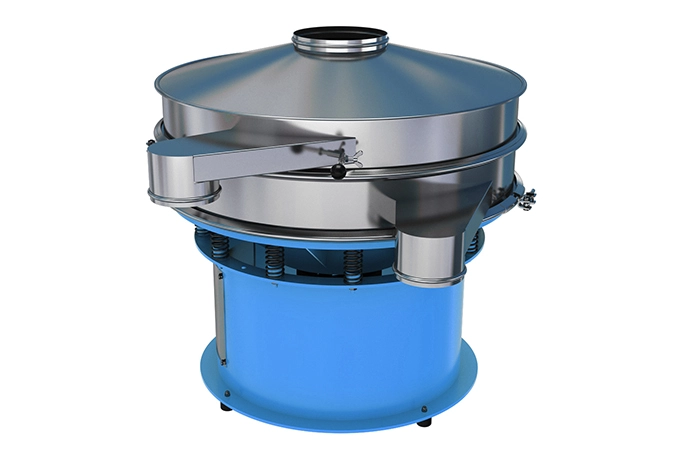

Tvtion Vibrating Screen Machine strive to the highest significant on the quality and service, verifying reliability, durability, performance and high efficiency.
Vibratory separator is mechanical vibration, the vibrating motor as a power drives the eccentric weights at both ends of the motor shaft to generate centrifugal force, and then complete the screening process.
In addition, the number and angle of the eccentric blocks can be adjusted to change the centrifugal force synchronously.
Tvtion vibrating screen machine is a sieving equipment designed around the principle of three-dimensional vibration. The vibration is achieved how it works.

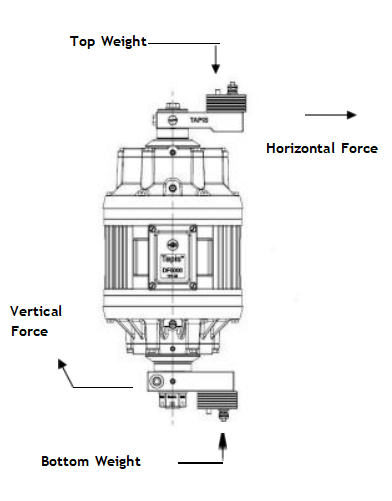

Tvtion vibrating screen machine is a sieving equipment designed around the principle of three-dimensional vibration. The vibration is achieved through the eccentric blocks at the upper and lower ends of the motor shaft, the upper eccentric weights controls vibration in the horizontal direction, and the material segregates from the center of the screen mesh to the periphery.
The eccentric weights at the bottom of the generator shaft is used to get the spiral screening trajectory of the material by different angles of eccentric blocks, causing the equipment to vibrate in the vertical and tangential planes, forming a variety of material dispersion patterns to ensure that the differentiated needs of customers are met and the output of the maximum production capacity is accomplished and higher screening efficiency.

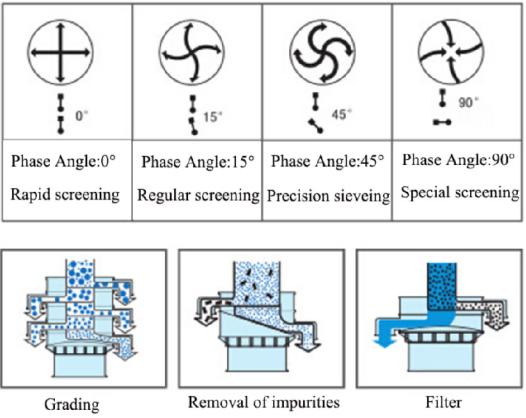

Most dry materials will require specific weights settings to achieve optimum efficiencies. Materials which are easy to grade, for example materials being processed on a relatively large mesh and having little oversize, can be processed on angles between 0 and 45 degrees, where a fast reject will assist in the rapid discharge of oversize material from the screen. This allows a clear passage for undersized materials to pass through the mesh cloth.
In addition to eccentric weights angle settings to control the direction of the materials as they cross the mesh surface you also have the extra facility of adding and subtracting auxiliary weights to the motor out of balance weight systems to control both the speed and direction of process materials.
On leaving the factory, each machine is set-up to provide 75% of horizontal amplitude with the top eccentric weights, while the lower weight controlling the vertical amplitude is set to minimum amplitude with an angle setting of 60 degrees, the various settings and amplitude are recorded in the test documents at the rear of this manual.
Normally we provide a set number of auxiliary weights for each machine, these will be found attached to the sifter base unless already fitted.
Larger throughput and higher screening efficiency.
Material of SS 304, SS 316L, SS430, etc.
Inert gas protection system.
Hygienic & Contamination free sieving operation.
Size of 600mm, 800mm, 1000mm, 1200mm, 1500mm.
Quick release clamp for easy replaced.
Fined ultra screening solution as 800 mesh (15 microns) is available.
Prevent the mesh screen from being plugged and prolong the life span.
Easier to separate for static electricity, cluster and absorbance.

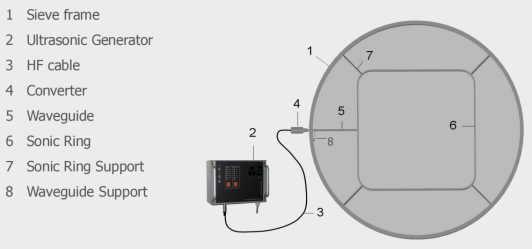

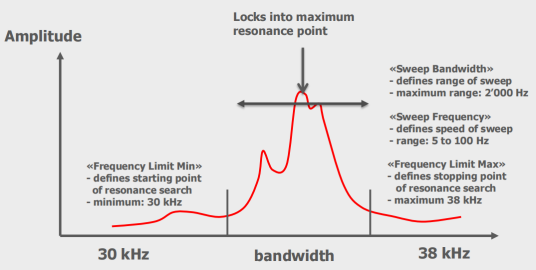

Bouncing balls and Swiss ultrasonic system.
Suitable for new type of materials but not change its characteristics.
Accelerate the separation of cluster and increase the screening capacity while reducing the number of big particles.

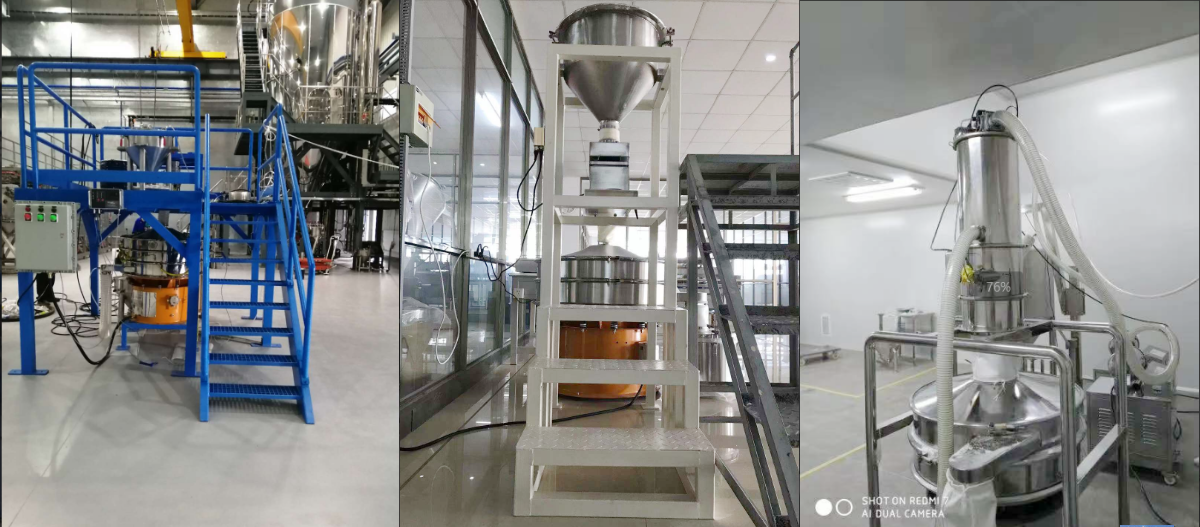

Customized service.

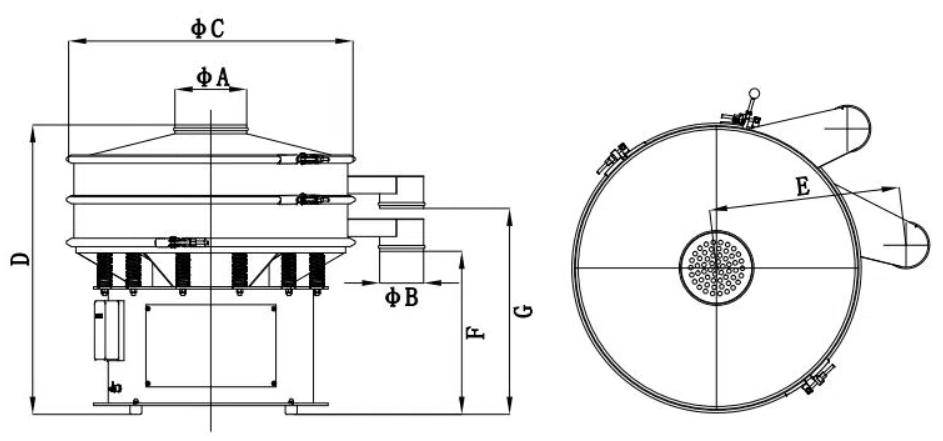

Item | 600mm | 800mm | 1000mm | 1200mm | 1500mm |
A | 145 | 195 | 245 | 245 | 245 |
B | 100 | 100 | 150 | 170 | 200 |
C | 600 | 800 | 970 | 1170 | 1470 |
D | 900 | 940 | 990 | 1075 | 1200 |
E | 442 | 557 | 651 | 780 | 938 |
F | 480 | 505 | 555 | 610 | 675 |
G | 630 | 655 | 705 | 760 | 840 |
Power(KW) | 0.35 | 0.6 | 1.1 | 1.1 | 1.5 |
Excitation Force(KN) | 7 | 13 | 20 | 20 | 32 |
As a leading supplier of powder blenders & separators, Tvtion provides customer-focused services to meet all your needs!
