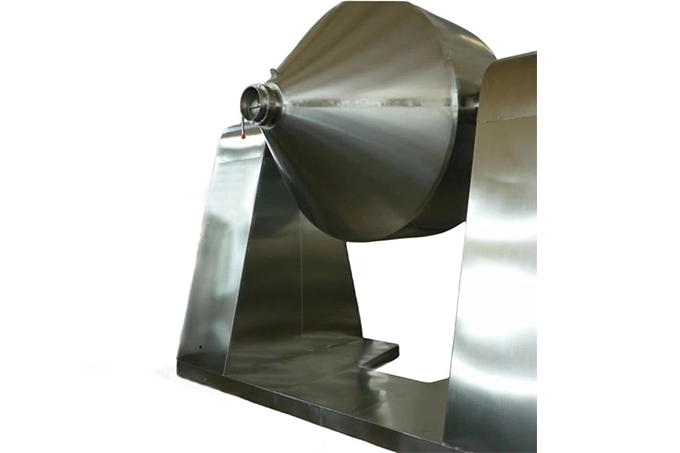

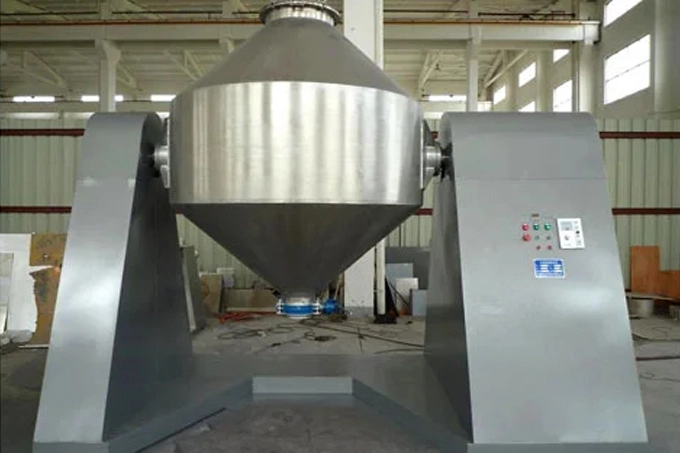

Double Cone Mixer refers to a mixing equipment that mixes various powders evenly through a rotating tank. The Double Conical Mixer is a machine that transports powder or granular materials into a double-cone container through vacuum conveying or manual feeding, and as the container continues to rotate.
The material undergoes complex impact motion in the container to achieve uniform mixing.

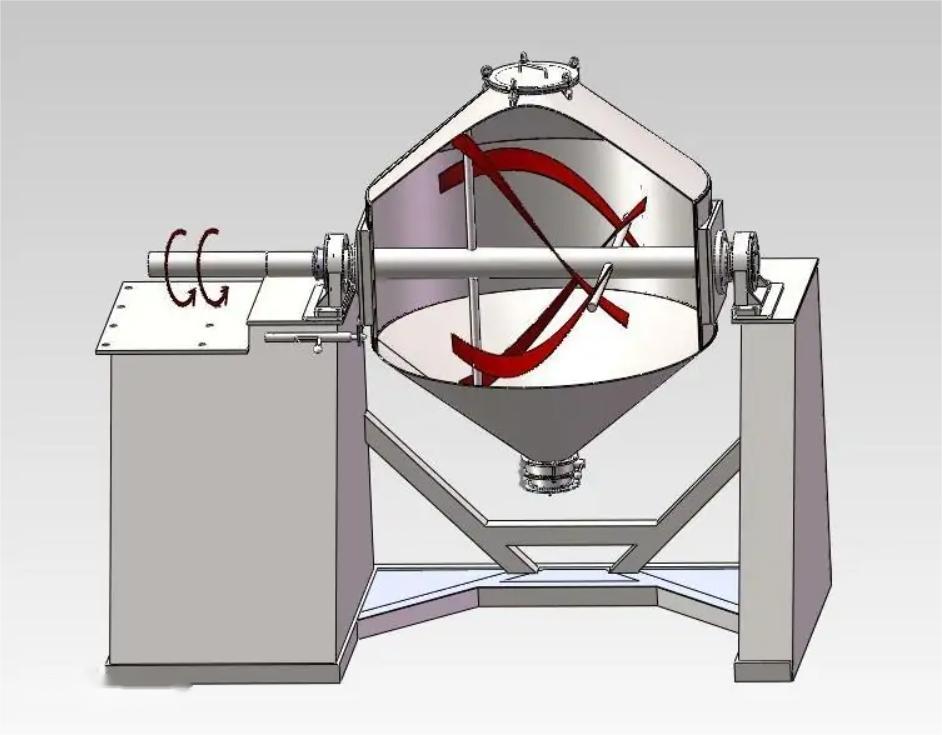

The motor and reducer drive the mixing tank to rotate through gear transmission. During operation, various prepared powders are added to the mixer tank.
Through the rotation of the tank, the materials are repeatedly aggregated and separated by gravity and centrifugal force. To achieve uniform mixing, the mixed materials will be discharged from the port by its own weight.
Suitable for powders with different specific gravity
Internal & External rotation to mix, with high uniformity

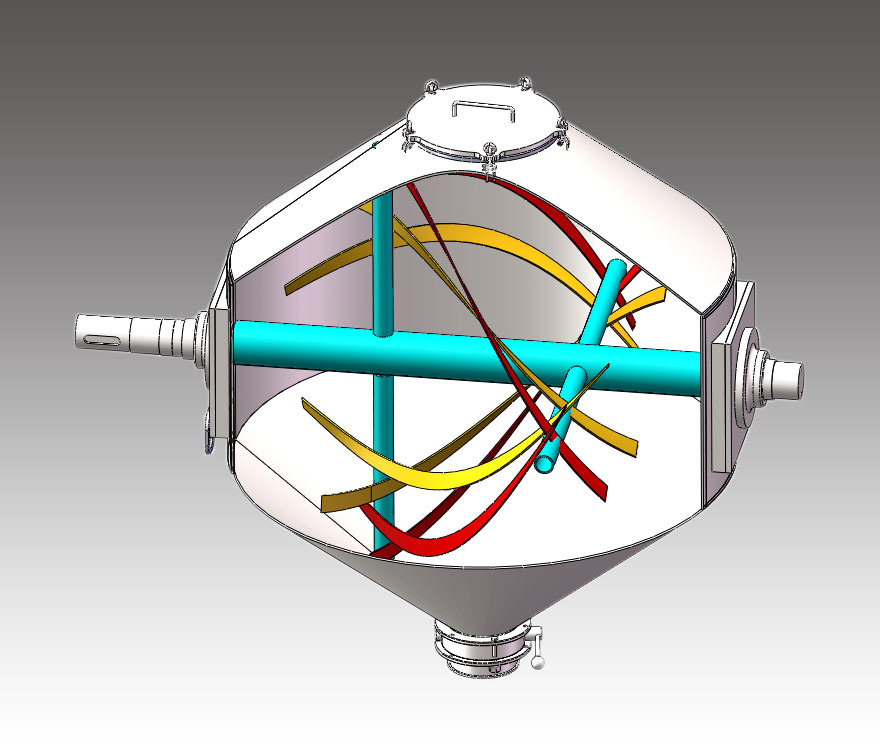

Equipped with a forced stirring device and a spray device, which is suitable for mixing materials in multiple processes
Equipped with automatic timing device, which can be set to automatically stop in 0-999 minutes
Dust-free, automatic mixing
The principle of gravity diffusion for mixing, the pressure on the material is small and the material will not be sheared or crushed
High-quality stainless steel, the inner&outer walls are polished, no cross contamination
Hygienic design, and complies with GMP standards
Model | Volume(L) | Capacity(kg/batch) | M-Time(min) | Speed(rpm) | Power(kw) | Dimensions(L*W*H) mm | Rotation height(mm) | Weight(kg) |
TDM-180 | 180 | 90 | 4-8 | 12 | 1.1 | 1400*800*1850 | 1850 | 280 |
TDM-300 | 300 | 150 | 6-10 | 1.1 | 1685*800*1850 | 1850 | 310 | |
TDM-500 | 500 | 250 | 2.2 | 1910*800*1940 | 1950 | 550 | ||
TDM-1000 | 1000 | 500 | 3 | 2765*1500*2370 | 2460 | 810 | ||
TDM-1500 | 1500 | 750 | 10 | 4 | 2960*1500*2480 | 2540 | 980 | |
TDM-2000 | 2000 | 1000 | 7-10 | 5.5 | 3160*1900*3500 | 3590 | 1500 | |
TDM-2500 | 2500 | 1250 | 7-8 | 7.5 | 3386*1900*3560 | 3650 | 2150 | |
TDM-3000 | 3000 | 1500 | 7.5 | 4450*2200*3600 | 3700 | 2500 | ||
TDM-4000 | 4000 | 2000 | 11 | 4750*2500*3680 | 3730 | 3200 |
