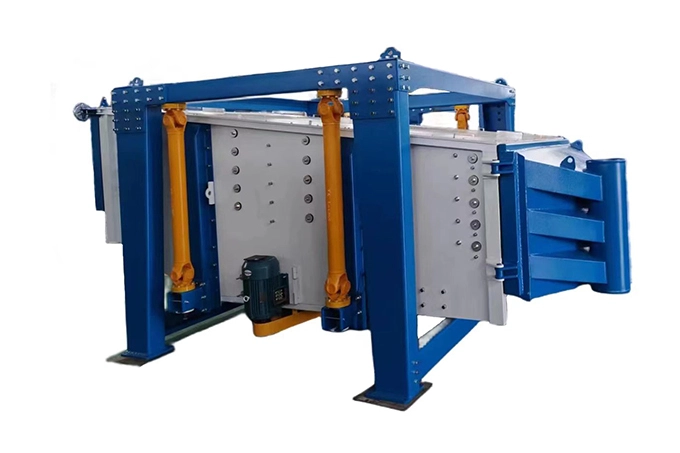

Gyratory Sifter

How Gyratory Sifter Works

The rectangular sifter equipment uses an imported motor as the power source, the structural design of the whole machine adopts German technology, and the transmission method imitates the manual patterns.

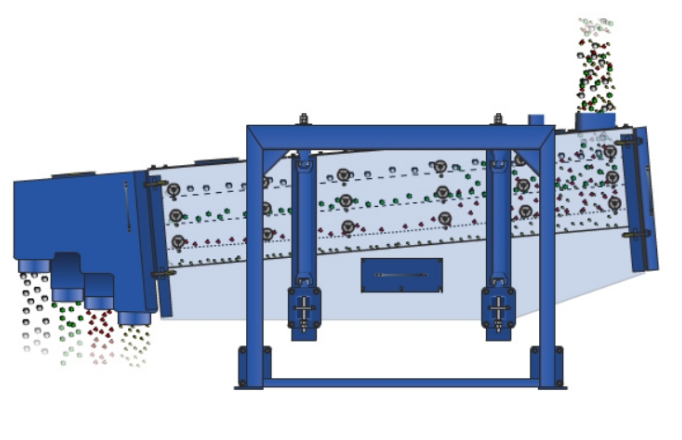

Screen Box Motion Trajectory

The reciprocating inertia force formed by the eccentric wheel of the driving device rotating around the fixed axis. According to its structural characteristics and principles, the gyratory screen generally adopts a horizontal design or a slightly titled design at a certain angle. After the square screen is started, the swing body reciprocates forward and backward under the action of inertial force, and the screen box drives the screen mesh surface to swing periodically. As a result, the materials make directional jumping motion along with the swing body to complete the screening process.

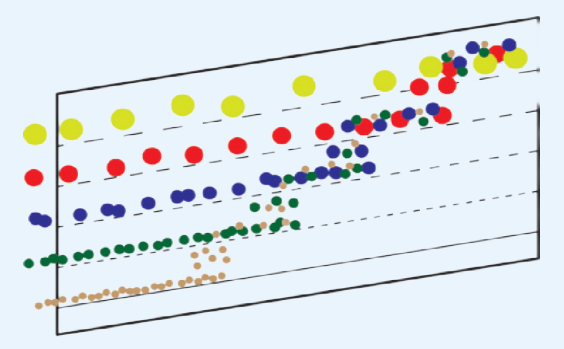

Material Movement Trajectory

The material travels a long distance on the mesh surface, resulting in high screening accuracy and large yield. At the feed port, the material can be quickly spread flat on the screen mesh surface through the distributor device, the inclination angle and swing force of the rectangular screen will quickly pass the material through the screen mesh.

 Structure of Gyratory Sifter

• Fully enclosed structure without dust-free, with a balanced design, small vibration, low noise, and meets environmental requirements

• Combination of circular, elliptical and linear motion modes ensures the optimum screening, which is suitable for a variety of materials, especially effective for strip,spherical and irregular materials

• Equipped with automatic tensioning and cleaning sifter installation system, high efficiency, longer life and simple screen mesh replacement

• Enhanced body base ensures smooth operation, handling structure is optional

• Improved wire rope hanging structure to avoid wear and tear

• Multi-layers screen frame design available
