The movement of the tumbler screening equipment is to simulate the simple hand screening, and combine the principle of circular motion and upward parabolic motion.
By adjusting the radial angle and tangential angle, the material can make regular trajectory motion on the mesh, which can make the material travel longer on the mesh surface, contact the screen mesh more fully, and improve screening efficiency.

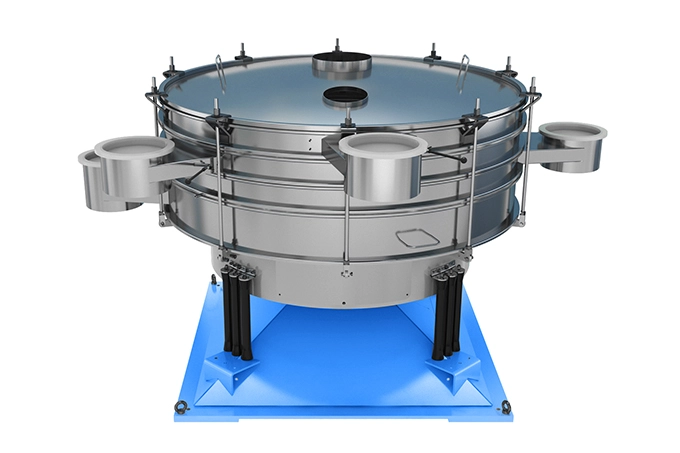

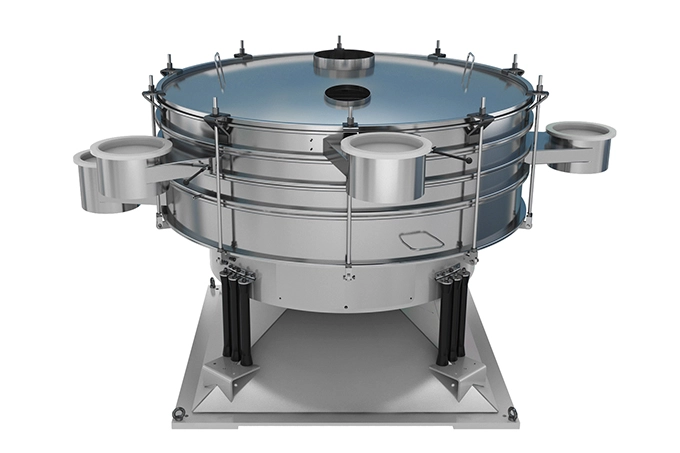

The tumbler vibratory sifter adopts ABB motor with low-speed V-belt drive, which can not produce resonance, has stable performance, low noise and extended service life.

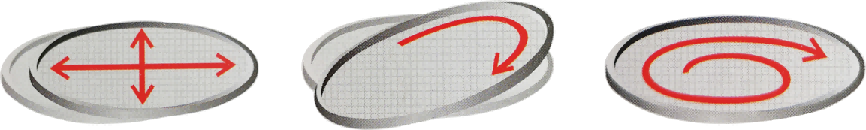

The gyrating motion simulates manual screening, and by adjusting the eccentricity, radial direction and cutting angle causing the horizontal and parabolic three-dimensional reversal motion.
The powder material spreads evenly from the center to the edge, and then spreads to the central axis in a spiral motion, so that the fine particles complete the screening process.
Materials close to the screen aperture will be successfully separated as the horizontal and vertical acceleration increase.
Especially for ultra-fine powder, during the screening process, the material is easy to block the screen, reducing the screening efficiency. If the machine is to work continuously and efficiently, the problem of blocking the screen must be avoided.
By reverse sieving, the fine powder is separated first and the coarse powder.
Low acceleration, prolong service life and ensure product stability
Large mass production capacity, high precision screening
7 fraction screening at every sifter
Modular design, no dead corners complying with hygienic standard
Maintenance-free and operates continuously for 24 hours
Special structure ensure the balance and stability
Automatic hydraulic lifting device
Optimal dynamic and static balance design
All accessories are designed for easy disassembly and cleaning
Swiss ABB motor with Atex certificate

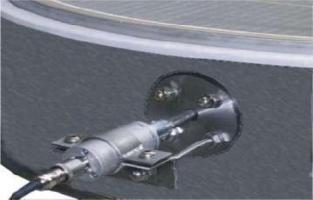

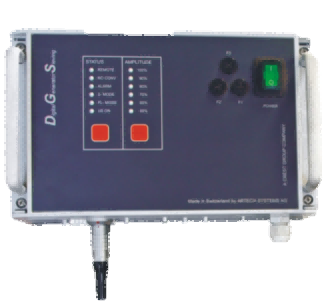

Swiss ultrasonic system -Atex Zone 21 & 22
Low noise level less than 75dB(A)
 |
|

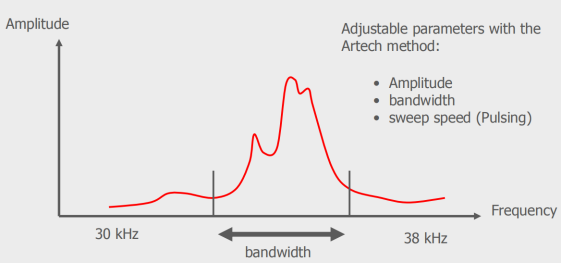

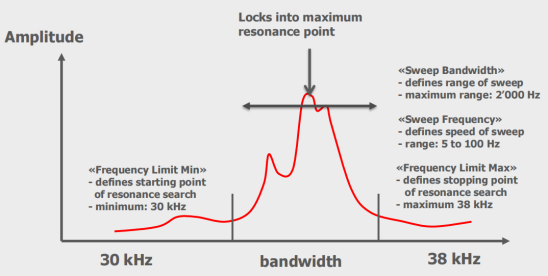

Automatic spectrum search in the frequency range from 30kHz to 38 kHz ensures the highest power output.
As a leading supplier of powder blenders & separators, Tvtion provides customer-focused services to meet all your needs!
