This machine is suitable for mixing two or more dry powdery and granular materials in pharmaceutical, chemical, food and other industries.
The equipment has a unique cylinder structure, high mixing efficiency, and no dead ends, which is made of stainless steel, with polished inner and outer walls, beautiful appearance, and even mixing.

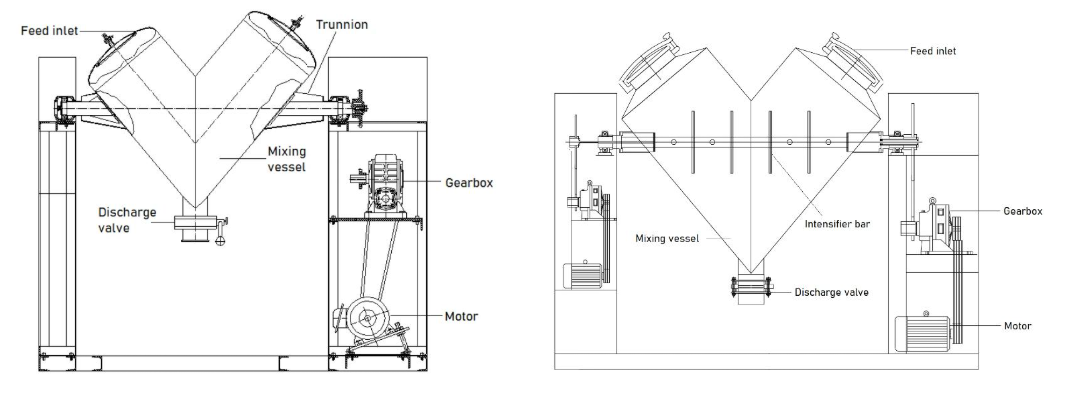

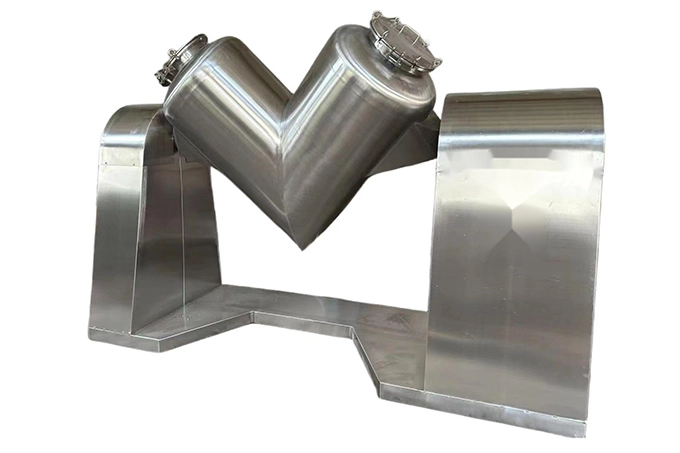

This powder mixing equipment adopts upgraded technology and is designed as a reinforced mixer with a reinforced stirring shaft inside. This V-shaped mixer has a remarkable mixing effect for materials that are finer powder, easy to clump, or two or more powders, and contain a certain amount of moisture.
A forced mixer is installed according to customer requirements to be suitable for finer powder, lumps and materials containing a certain amount of moisture.
It is mainly suitable for pharmaceutical, food and other industries, which strictly follows international standards and food & pharmaceutical manufacturing regulations throughout the production process.
Model | TVM-0.2 | TVM-0.3 | TVM-0.5 | TVM-1 | TVM-1.5 | TVM-2 | TVM-2.5 | TVM-3 | TVM-4 | TVM-5 | TVM-6 |
Capacity(kg) | 72 | 90 | 150 | 300 | 450 | 600 | 800 | 900 | 1200 | 1500 | 1800 |
Vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
Time of feeding material(min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
Total volume(m3) | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
Mixing speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
Motor(kw) | 1.1 | 1.1 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
Rotating height(mm) | 1580 | 2160 | 2360 | 2600 | 2800 | 2900 | 3000 | 3200 | 4000 | 4500 | 5000 |
Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
As a leading supplier of powder blenders & separators, Tvtion provides customer-focused services to meet all your needs!
