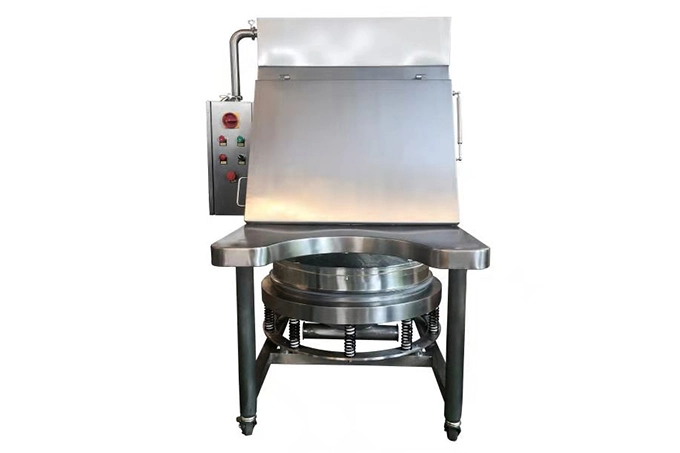

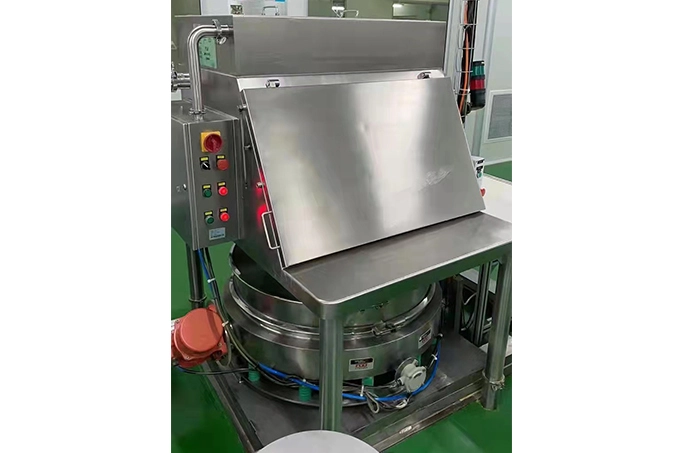

The Dust-free Feeding Station acts to open and empty the bags efficiently, enabling fast and dust-free discharge into the dry processing machine.

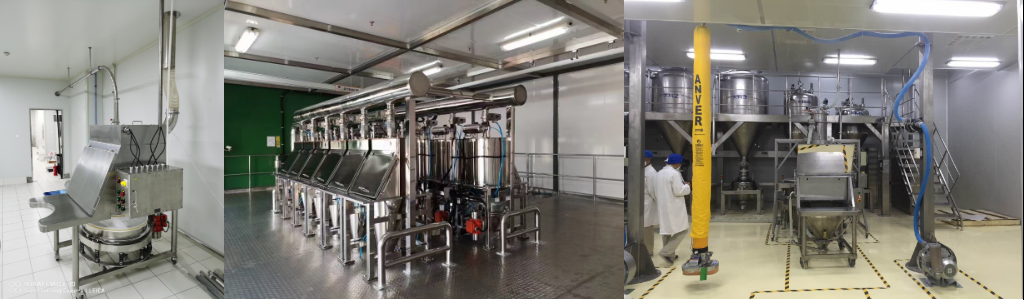

Bag Tipping Stations are especially suitable for processes such as hoppers, conveyor or mixers, because they are located directly above the feeding station, and the bags are opened by gravity to enter the next process.
The design of the tipping station must ensure that the operator have a fully operable and comfortable position to feed material.
Therefore, the height of the feeding station or the size of the support must be precisely designed so that the worker has enough space and platform to operate, but the height of the tilt table must be moderate, otherwise there is a risk of working.
Due to the risk of foreign matter entering the hopper during the dumping process to prevent foreign bodies, the environment or the material from entering.
Pulse backflush mechanism without dust
Built-in motor installed independent space ensures material quality and safety
Safe and ergonomic loading system
Built-in hopper ensures high throughput
Various of filter element easy to replace and clean sanitary
Material of SS 304 & SS 316L
Mesh grid design to prevent foreign bodies from entering
Outstanding Hygiene, cGMP regulations
Better working environment enhancing ergonomics and operator safety
Model | TM-200 | TM-300 | TM-800 | TM-1500 |
Max static pressure (Kpa) | 30 | 34 | 40 | 42 |
Work stress (Kpa) | <20 | <22 | <28 | <31 |
Max volume (m3/h) | 300 | 330 | 370 | 480 |
Motor (kw) | 3 | 4 | 4 | 7.5 |
Electrical source | Customized | |||
Transmission capacity 5(m) | 350 | 500 | 1000 | 1500 |
10(m) | 250 | 350 | 800 | 1200 |
(Kg/h)15(m) | 150 | 250 | 600 | 1000 |
Pipe diameter (mm) | 50 | 50 | 63 | 63 |
Inspiratory tube diameter (mm) | 63 | 63 | 76 | 76 |
Note | All kinds of extrusion and injection molding machine, various mixing machine | |||
Issue | Recommendation |
Spillage of product during tipping | Review the size of the supporting table and the position of the grid to support the bag during slitting |
Dust emission during tipping |
|
Bad flow of product out of the tipping hopper | Check hopper slope, add discharging aids to promote the flow |
Bad flow of product through sifter |
|
