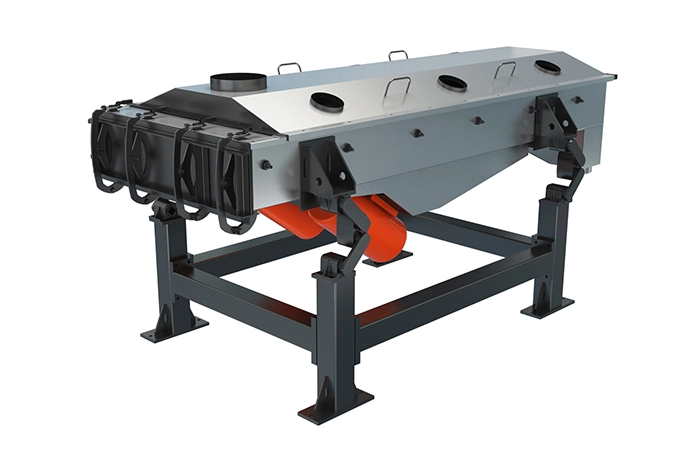

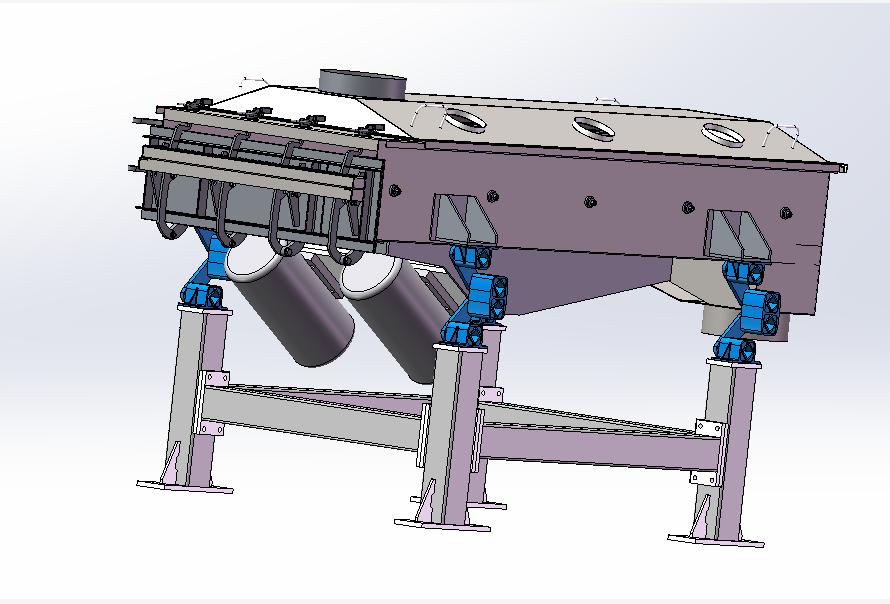

Tvtion Rectangular Separators are driven by two contra-rotating unbalance motors, which utilise a linear motion directed to the plant's center of gravity, which offer both elliptical and linear motion with a just a flip of a switch. Both motions provide benefits, but primarily linear motion offers superior solids conveyance, and elliptical motion generates a much gentler motion and provides excellent using life.
The throwing angle of the screen results from its design and process engineering and is adjustable via the masses of the unbalance motors.
The screen box absorbs all the static and dynamic powers and supports itself at four points against the substructure.
The materials go the feed port of the rectangular linear sifter uniformly, beating while sieving forward under the excitation of the vibration motor, as a result some kinds of products and unqualified will be segregated through multi layer, and then discharge outlet respectively from upper mesh cloth and of flow to hopper or holding barrel.
Rectangular screening machine suitable for general material separation in industrial production, including dry matter particles, powder separation, slurry filtration, etc.
Maximize Sieving Efficiency
Increase in Production Throughput
Robust construction
Driven by two contra-rotating vibrators the linear action produces a positive conveying action capable of vibrating larger and inclined screens suitable for wet and difficult materials.
Mesh cloth size of (L*W) 5m*2m
Large mass production throughput
Open, semi or fully enclosed using bolt-on or quick clamps
Multi-layers available
Longer trips in net mesh surface
Good screen mesh tension to extend using life
Carbon steel or Stainless steel construction
Lined with hardened steel, stainless steel, plastic and rubber, etc.
While adjusting the excitation force of the vibration motor, which can change the angle of the eccentric weights on the motor.
To loosen the clamping nut (M15*1) of the eccentric blocks to adjust.
Total Qty | 5+5 | 8+8 | 9+9 | 12+12 | 13+13 |
Reduce excitation by turning on each side (%) | 40 | 25 | 22.2 | 16.7 | 15.4 |

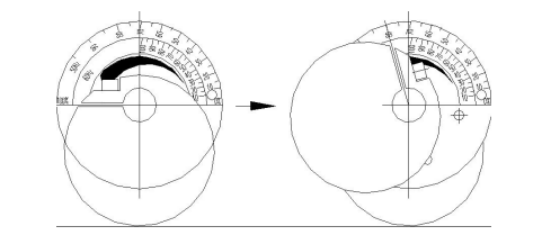

Let the original maximum excitation force be Fc. when the center line of the eccentric blocks notch and the round eccentric weights indicator, the adjusted excitation force is Fc*80% of 50Hz/60Hz on the 80% scale line of 50Hz/60Hz is aligned.

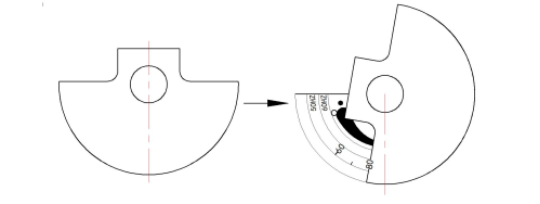

Adjustment of the excitation force of the sector-shaped eccentric weights vibration motor.
