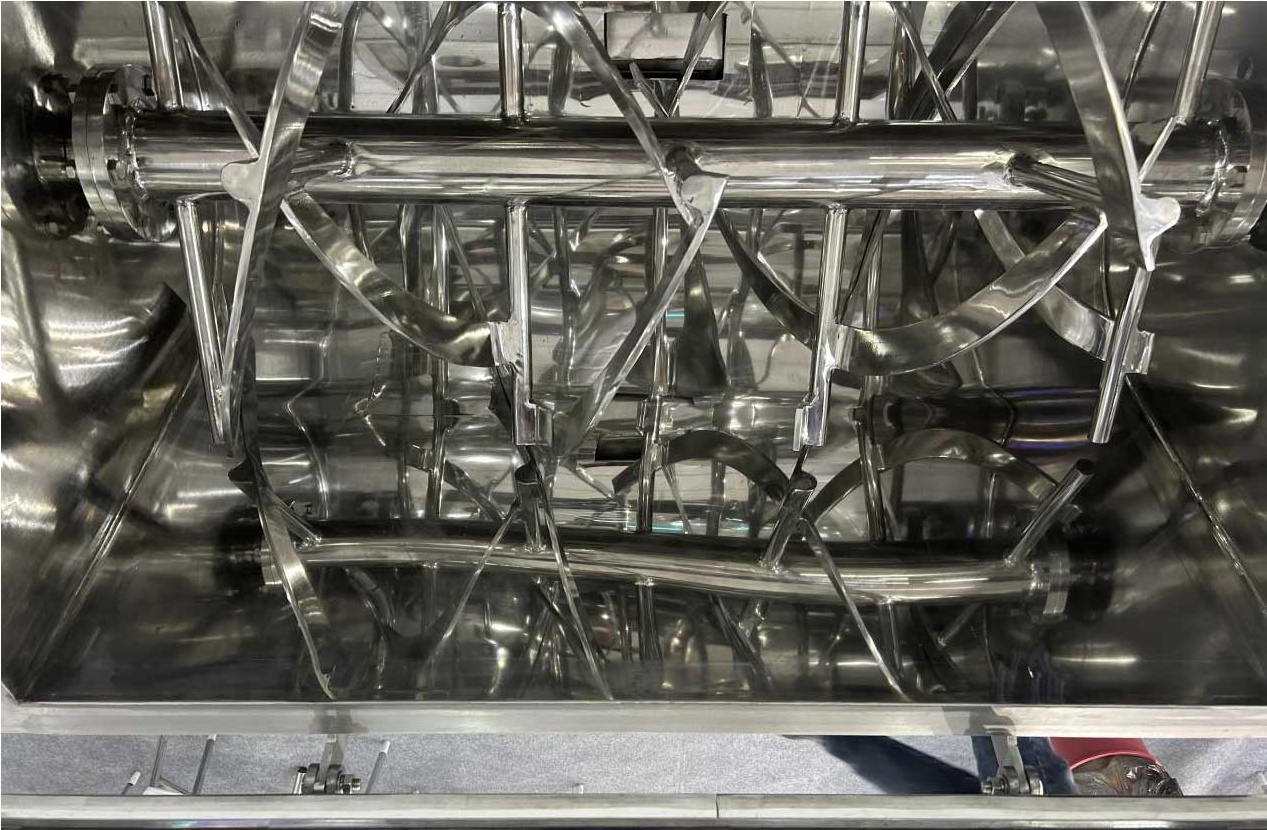

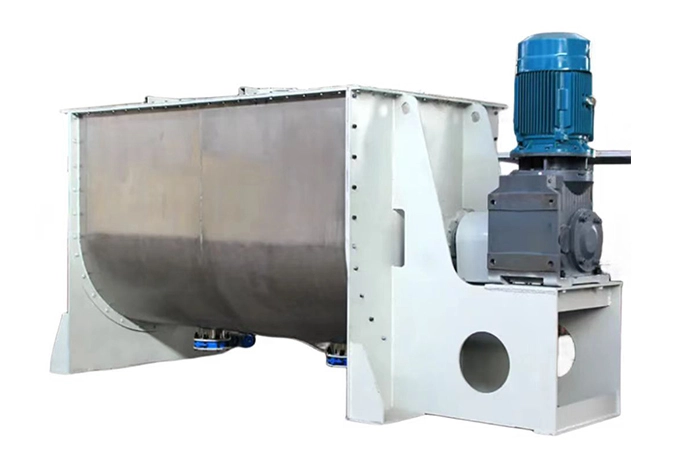

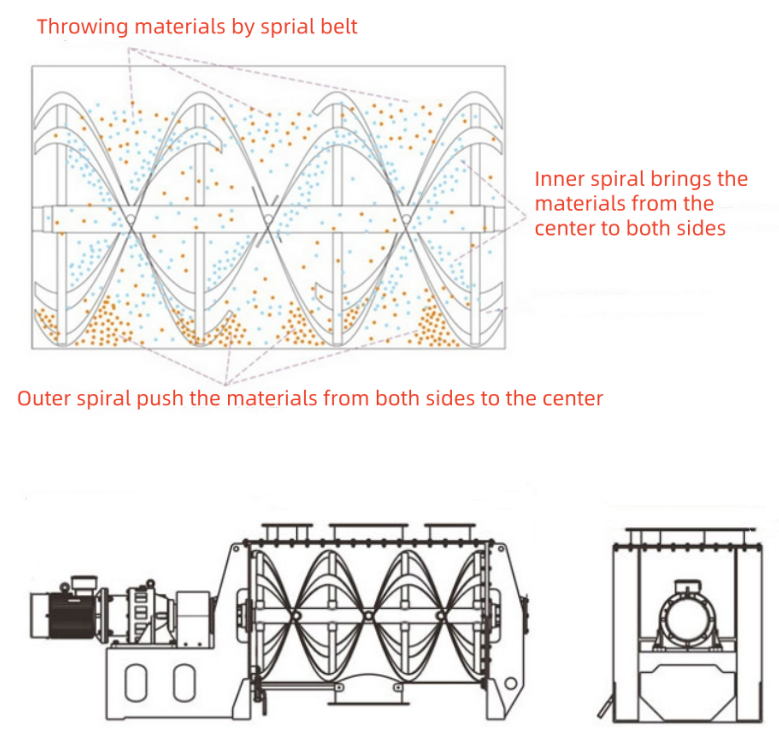

The horizontal ribbon blender is mainly composed of a barrel, a spiral blades and a transmission system. A double-layer spiral blade is set on the transmission main shaft, which can also be made into three layers. The outer spiral gathers the material from both sides to the center, and the inner spiral brings the material from the center is transported to both sides, forming convective mixing.

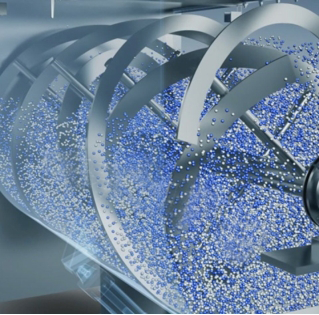

The inner and outer diameter spirals on the mixing shaft drive the materials in the barrel to move. The inner spiral drives the materials close to the axis to rotate on the axis, pushing the axial direction from the inside to both ports. The outer spiral drives the materials close to the barrel wall to rotate on the axis, and the axial direction moves from both sides, inward conveying to achieve high efficiency, rapid and uniform mixing.

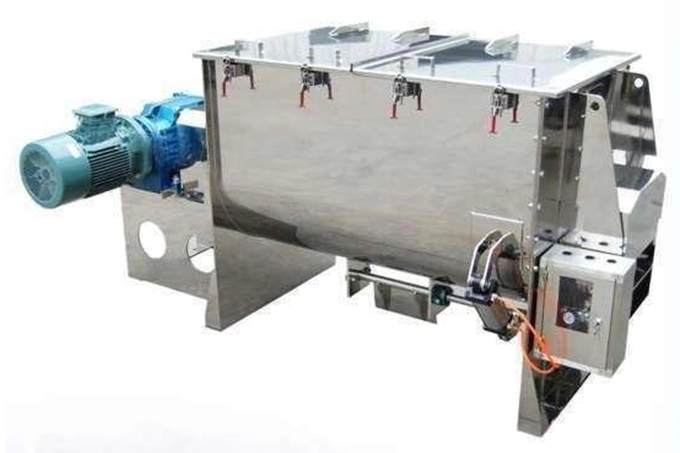

Powder materials: the ribbon mixer adopts a pneumatic discharge structure, which has the advantages of fast discharge and no residue.
Fine materials or semi-fluid materials, adopt manual butterfly valves or pneumatic butterfly valves are available, which are economical to use and good sealing effects
Special working environments, jackets can be configured for heating or cooling
Heating method uses electric heating and thermal oil heating. Electric heating is convenient, but the heating speed is slow and high energy consumption
Thermal oil heating requires oil pan, oil conduction system and pipelines, which is expensive, but it heats up quickly and consumes low energy
Cooling process adopts cooling water injected into the jacket, which has a large heat exchange area and a fast cooling rate
The motor and the mixing spindle are directly connected through a cycloidal pinwheel reducer, which has a simple structure, reliable operation and easy maintenance
This horizontal mixer is widely used in the mixing of putty paste, real stone paint, dry powder, putty, medicine, food, chemicals, feed, ceramics, refractory materials, etc. Especially for powders and powders, powders and glue liquids materials mixing, it is optimum for viscous materials.

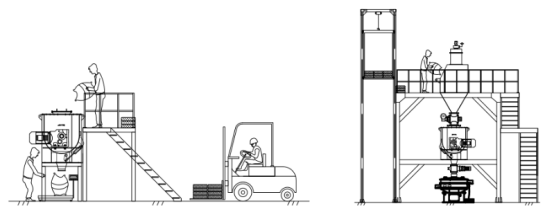

Solution 1: Manual feeding to tipping station to horizontal ribbon mixer to discharge valve to vibrating screen.

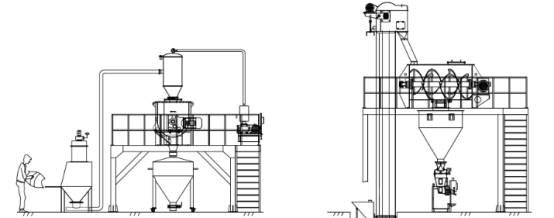

Solution 2: Manual feeding by tipping station to Vacuum conveying to horizontal ribbon conical mixer to mobile silo.
